1525-BL Servo Amplifier

For Brushless Motors
15 Amps continuous current
25 Amp peak current @ 170 VDC for total 2450W continuous power
Power duplicator of the command signal
A Battery, a motion controller or a signal generator can be the source of the command signal input

SKU: 3500220000 Category: Analog Servo Drives

Product Categories

*Please call for pricing

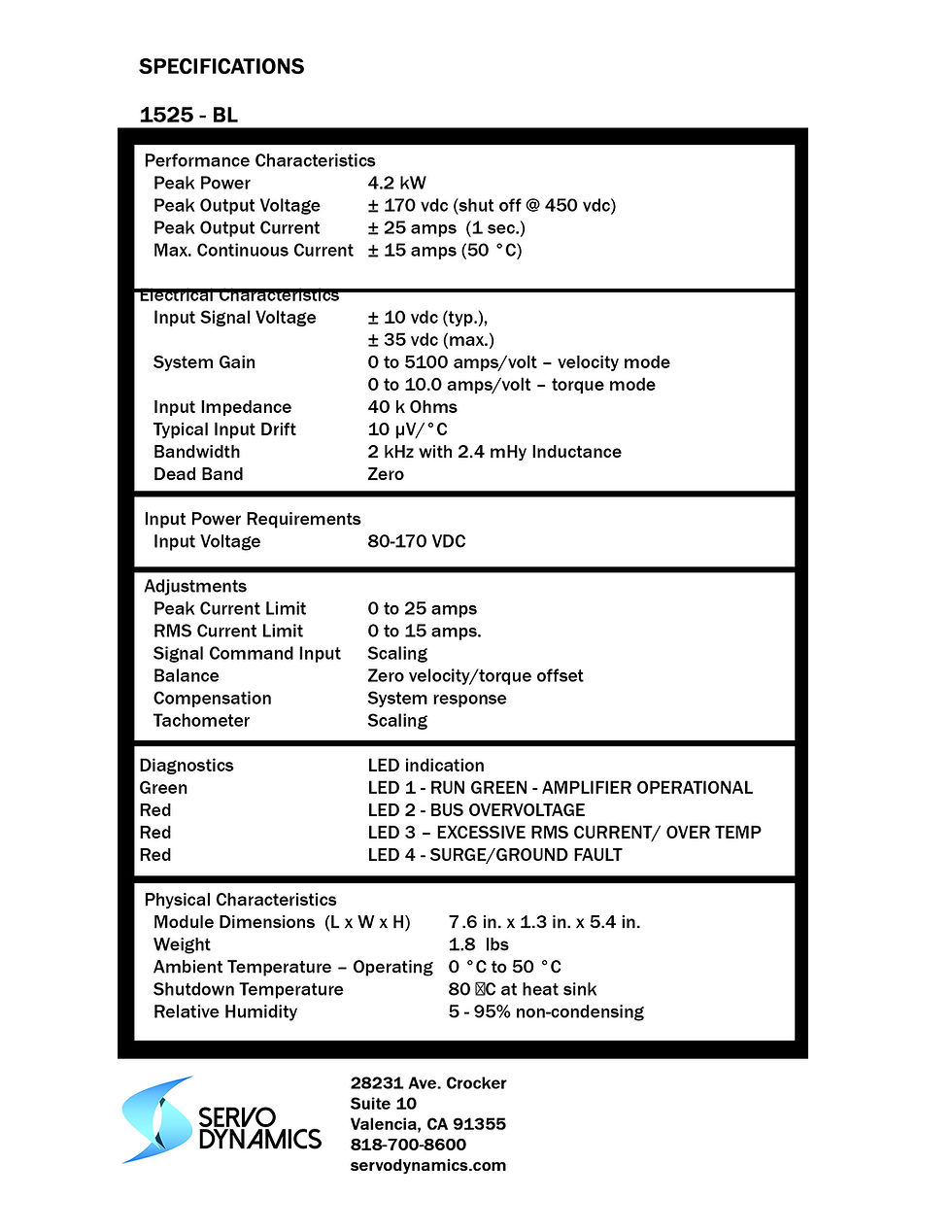

Click on image below for the 1525-BL Specifications:

1525-BL-Specifications

1/1

Click on image below for the 1525-BL Wiring Diagram – Motor with Hall Sensors:

1525-BL-Wiring-Diagram

1/1

Click on image below for the 1525-BL Wiring Diagram – Motor with Encoder with hall Track:

1525-BL-Wiring-Diagram-2

1/1

Click on link below for the complete 1525-BL Manual:
